Print Ad Specs

Ad Portal Tips

Access SendMyAd Portal

All advertising material must be single page PDF (if your ad is running as a spread, you must export your file as a one page PDF file by clicking on the “spread” box when exporting.)

PDFs should conform to the PDF/X-1a specification.

  • No Crop Marks or Color Bars – If you must have them on for a client- be sure they are at least 18 Points OFFSET – then upon upload into the portal, click on REPOSITION AD and use the Trim & Save Tool to remove them BEFORE approving the ad. (If file has been trimmed correctly you will only see from the BLUE BLEED RULE inward, the approved file should not have anything visible outside of the BLUE BLEED RULE.)
  • Total Ink Density cannot exceed 300% – for all page elements, text, photos, artwork, etc.
  • CMYK only – No RGB, LAB or PMS colors (unless you are actually printing a PMS color)
  • Image Resolution of at least 300 dpi – Low resolution images may not print as sharply as intended. If the images in your file were originally high resolution, and are being flagged low resolution in the ad portal, check your PDF settings to make sure the images are not being downsampled when converting to a PDF.
  • Build file to correct size – you can download an InDesign template from the Ad Portal.
  • Bleed – If your ad is to bleed, please be sure to include an EXTRA 0.125” of color or image on all sides of the ad that is to bleed. (Full page ads bleed on all 4 sides regardless of binding method).
  • All fonts must be embedded.
  • Error and Warning Messages – Once your file has finished processing you will see a list of errors and warnings on the right hand side. Place your cursor over these messages and it will highlight the area of the file in question. Click on messages that will explain how to fix the issues.

For help in using the Ad portal, at any time please contact Sue Gigliotti at sgigliotti@specs-questex-com.us35.cdn-alpha.com

Ad Specs per Brand

Examples of advertisement options for Questex are below, along with specifications.

HOTEL MANAGEMENT

AHF/MFE

AMERICAN SPA

LUXURY TRAVEL ADVISOR

HOTEL MANAGEMENT

General Specs

Bleed Advertisements: Add 0.125” to top, bottom, left and right for bleed.
Live Copy: Live copy MUST be 0.25” inside the trim on all four sides, plus 0.125” on each side of the gutter for spreads.
Column Width: Page is eight columns wide, each column is 0.875” or 5p3 wide.
Printing Method: Web Offset
Binding Method: Saddle Stitched

Print Ad Sizes

Standard Ad Space Sizes
Width x Height
Publication Trim Size
8.875” x 10.75”
Full Page
8.875” x 10.75”
Full Page Bleed
9.125” by 11”
Spread
17.75” x 10.75”
1/2 Page Horizontal
8” x 5”
1/2 Page Horizontal Bleed
8.875” x 5.25”
1/2 Page Vertical
4” x 10”
1/2 Page Vertical Bleed
4.875” x 10.25”
1/2 Page Spread Bleed
17.75” x 5.25”
Footer
17.75” x 2.625”
Bleed Footer
18” x 2.875”
1/3 Page Vertical
2.25” x 10”
1/3 Page Vertical Bleed
2.95” x 10.75”
1/4 Page Horizontal
8” x 2.5”
1/4 Page Horizontal Bleed
8.875” x 2.625”
1/4 Page Horizontal Spread Bleed
18” x 2.875”
1/4 Page
3.875” x 5”
1/4 Page Bleed
4.4375” x 5.375”
Cover Tip
8.875” x 10.75”
1/8 Page (Classified Only)
3.875” x 2.25”

Special Ad Sizes

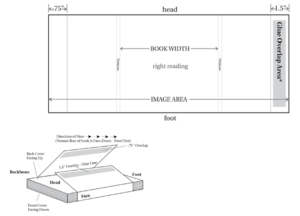

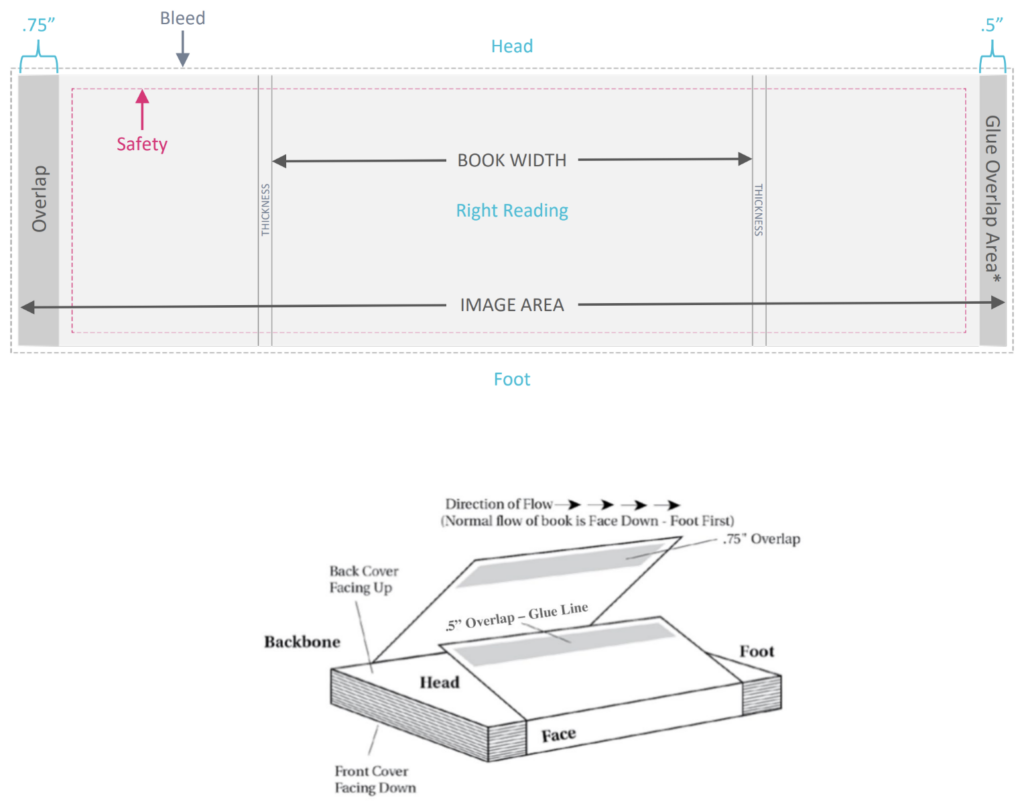

Belly Band

Belly bands and full wrappers require adherence to the following specifications to ensure a precise fit.

Calculating Belly Band & Full Wrapper Width
The image area should bleed to the edges, although approximately ¼” of this area will be covered by the overlap.

Measurements:

  • Trim: 18.25 inches X 5 inches
  • Bleed: .125 inches bleed on all sides (18.5 inches X 5.25 inches)
  • Safety: 17.75 inches X 4.5 inches
  • Glue overlap: 0.5 inches

Paper Weight: Printed on 80# stock to avoid slowdown and possible handwork.

Submit Materials To: SendMyAd Portal: questex.sendmyad.com

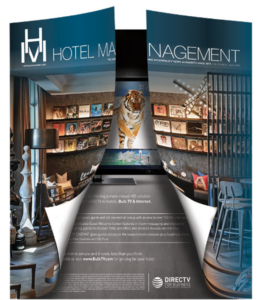

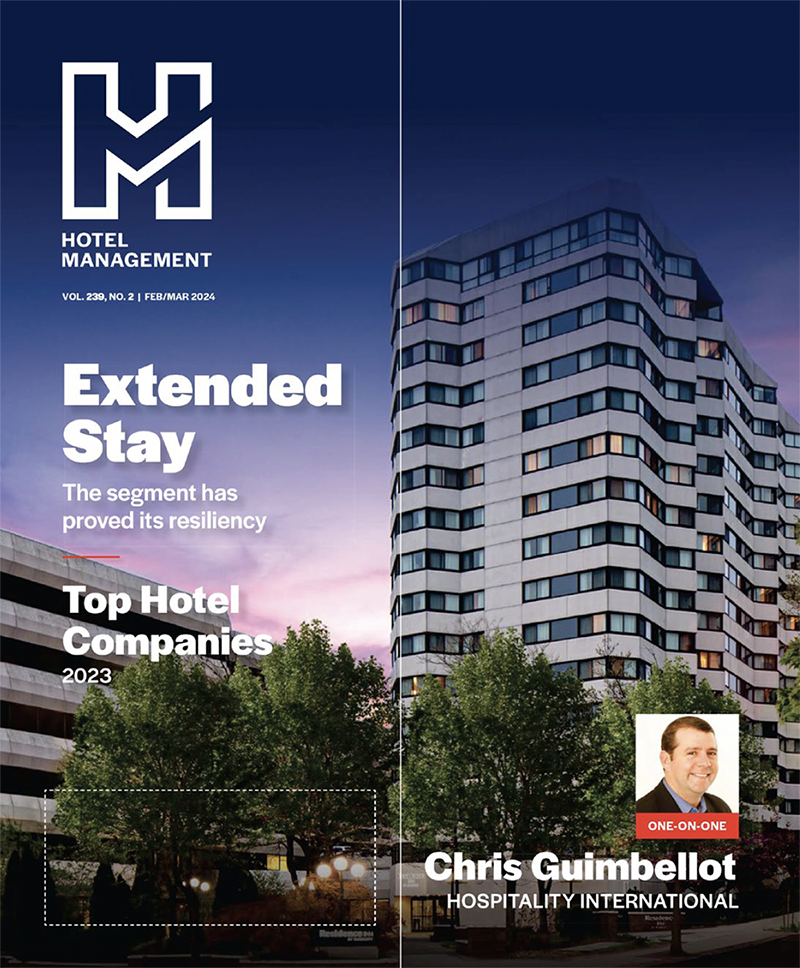

Split Cover

There is no more dramatic ad position than the split cover.

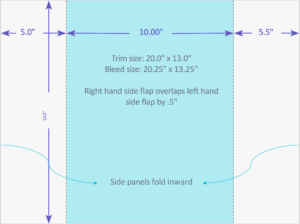

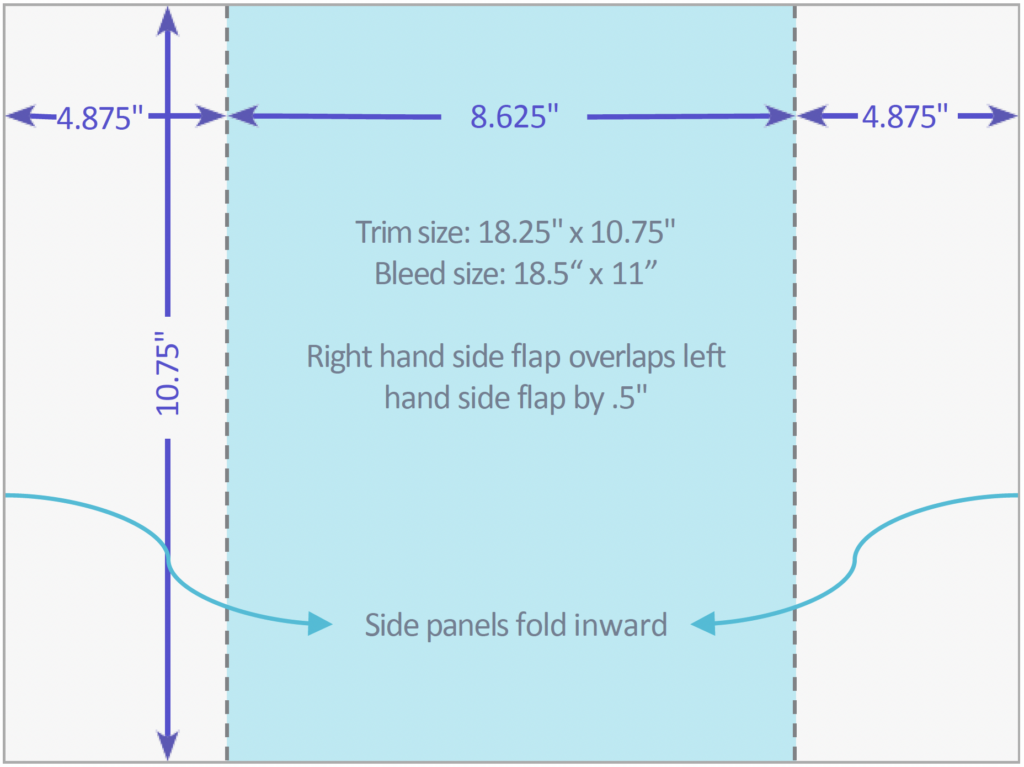

Layout Application Specs:

  • Total document width: 18.25”
  • Total document height: 10.75”

Production Contact:

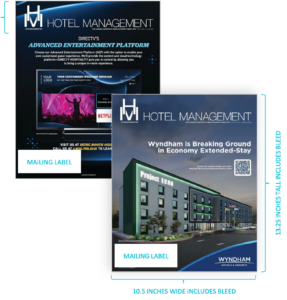

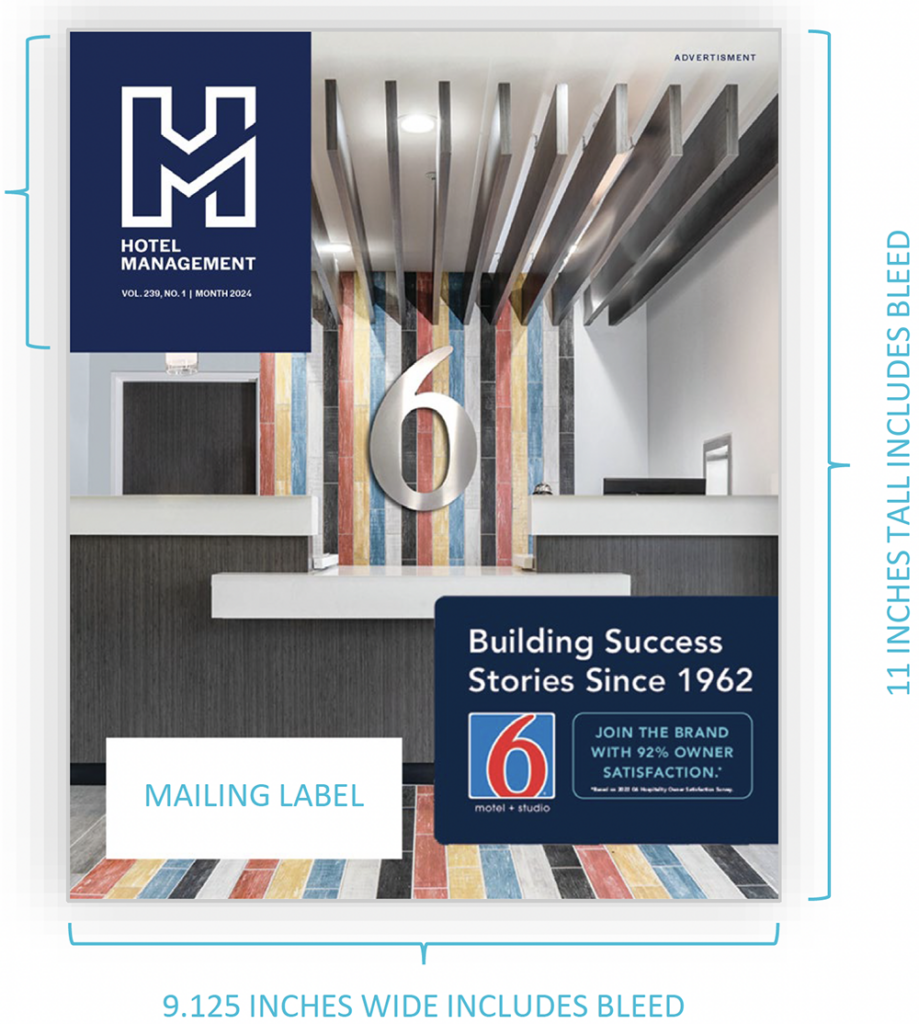

False Cover



The HM logo, volume number and issue date will appear in a dark blue box in the upper left-hand corner.

The box dimensions will be 3.1562 inches x 4.1 inches. This will be built into our template, no need to include in your ad.

Front and Back Dimensions:

  • All false covers, front and back, are full bleed.
  • 9.125 inches wide by 11 inches tall (includes bleed)

Mailing Label:

  • All false covers must include space for the mailing label.
  • 3.6716 inches wide x1.5082 inches deep
  • Please keep this area free from text. Do NOT include this box in your file. It is part of our InDesign template. All false covers will be labeled advertisement in the top right-hand corner.

Tips for creating a PDF for the Ad Portal:

  • Flattened PDFx1a:2001 – PDF v1.3
  • No crop marks or color bars: (If you must have them on – be sure they are 18 points OFFSET – then upon upload to the portal, Click on REPOSITION Ad and use the Trim & Save Tool to remove them in the portal before delivery to publisher).
  • CMYK only: No RGB or PMS colors (unless you are printing a PMS color)
  • Resolution of at least 300 dpi
  • Build to correct size: Download an InDesign template from the portal for the correct ad size. If your ad is to bleed, please include 0.125″ of EXTRA image on all sides that are to bleed off the page.
  • Single Page PDFs only: If running a spread, create a spread PDF from your application so it’s a one-page PDF file.

Production Contact:

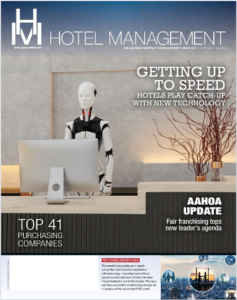

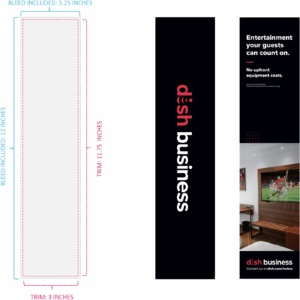

Bookmark Ad


Dimensions:

  • Trim: 3 inches X 11.75inches
  • Bleed: .25 inches bleed on all sides (3.25 inches X 12inches)

Submission instructions: Please upload your ad to questex.sendmyad.com

Classified Ad

3.875” x 2.25”

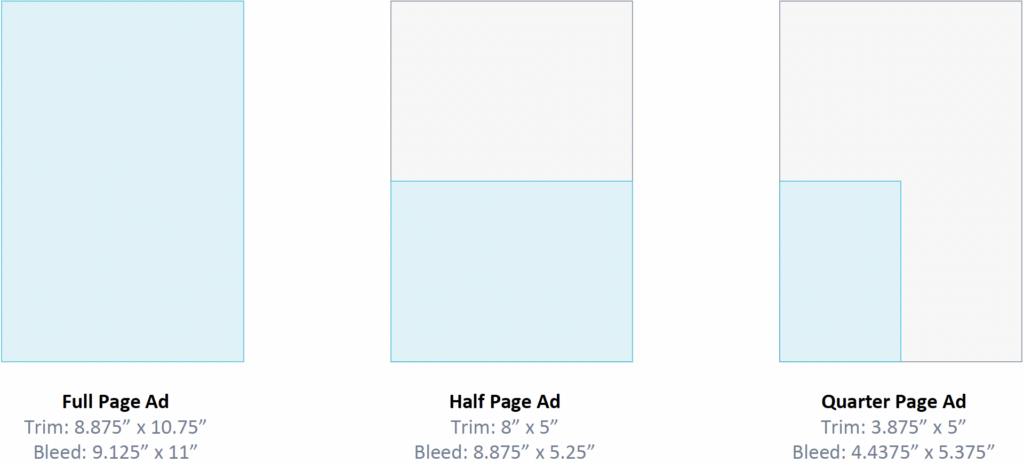

Congratulatory Ad

Influential Women In Hospitality, Thirty Under 30, GMs To Watch, Forty Over 40

Dimensions:

  • Full Page Ad – Trim: 8.875” x 10.75” | Bleed: 9.125” x 11”
  • Half Page Ad – Trim: 8” x 5” | Bleed: 8.875” x 5.25”

  • Quarter Page Ad – Trim: 3.875” x 5” | Bleed: 4.4375” x 5.375”

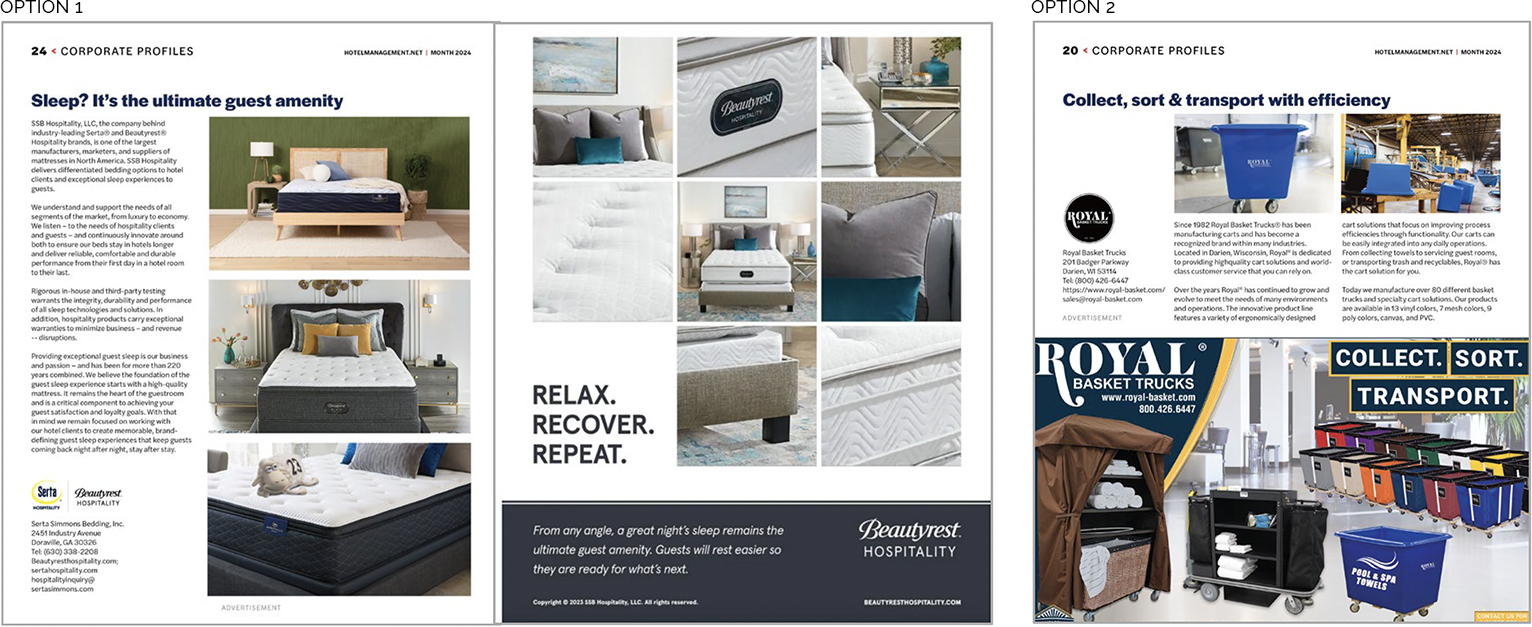

Elevator Pitch

Free with your full or half-page ad.


Option 1 – Full-Page Ad Profile

  • Headline: 5-7 words
  • Text: 200 words
  • 3 photos (4.7 x 2.8 inches, 300 dpi, jpg)
  • 1 company logo (eps preferred)
  • Company contact information: company, name, address, website, phone, email

Click here to submit materials


Option 2 – Half-Page Ad Profile

  • Headline: 5-7 words
  • Text: 135 words
  • 2 photos (2.9 x 1.8 inches, 300 dpi, jpg)
  • 1 company logo (eps preferred)
  • Company contact information: company, name, address, website, phone, email

Click here to submit materials

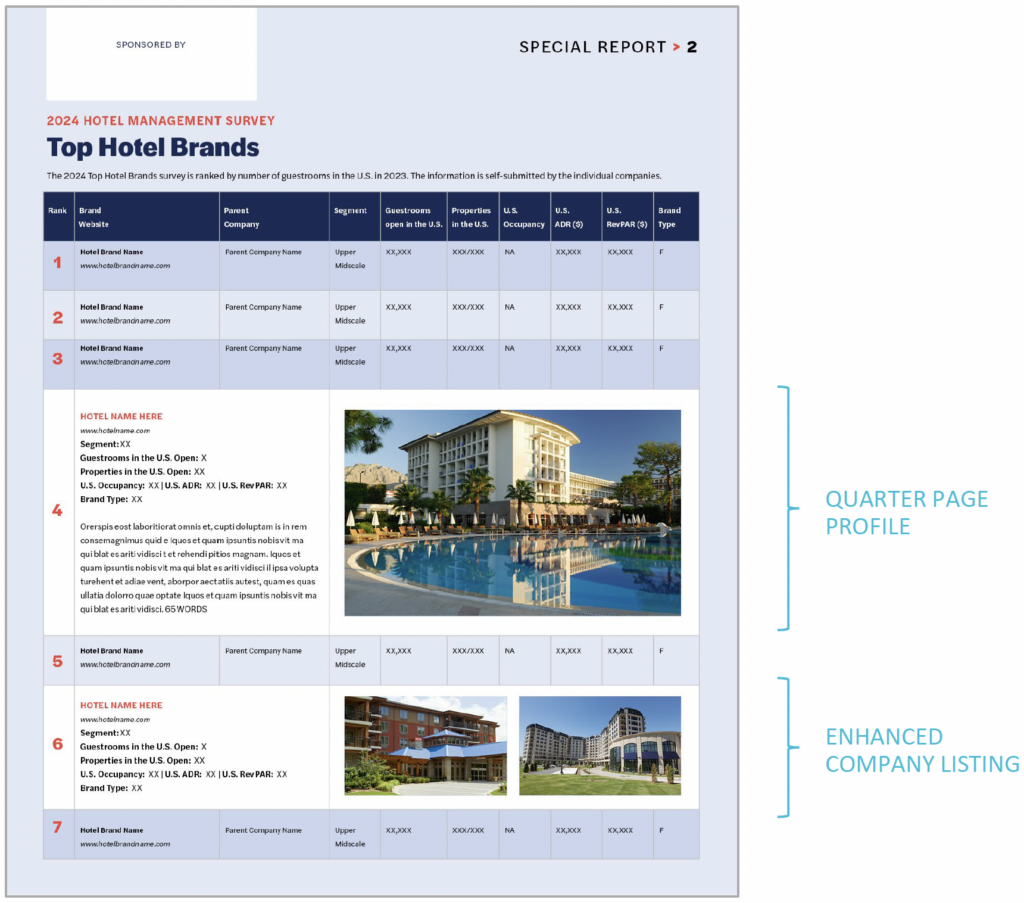

Listing/Profile

Two options to make your digital survey listings stand out


Enhanced Company Listing

  • Enhanced listings appear inline in the survey.
  • Company name in all caps, bold typeface.
  • 2 photos (no logos) to run along side the listing.
  • 2.0 inches x 1.2 inches, 300 dpi, jpg.

Click here to submit materials


Quarter Page Profile

  • Quarter page profiles appear inline in the survey.
  • Company name in all caps, bold typeface.
  • Includes survey data PLUS 65 words of text highlighting recent news or developments.
  • One large photo (no logos) to run along side the profile. 4.0 inches by 2.5 inches, 300 dpi, jpg

Click here to submit materials

Please note: Enhanced listings and quarter page profiles will appear in the downloadable version of the survey only.

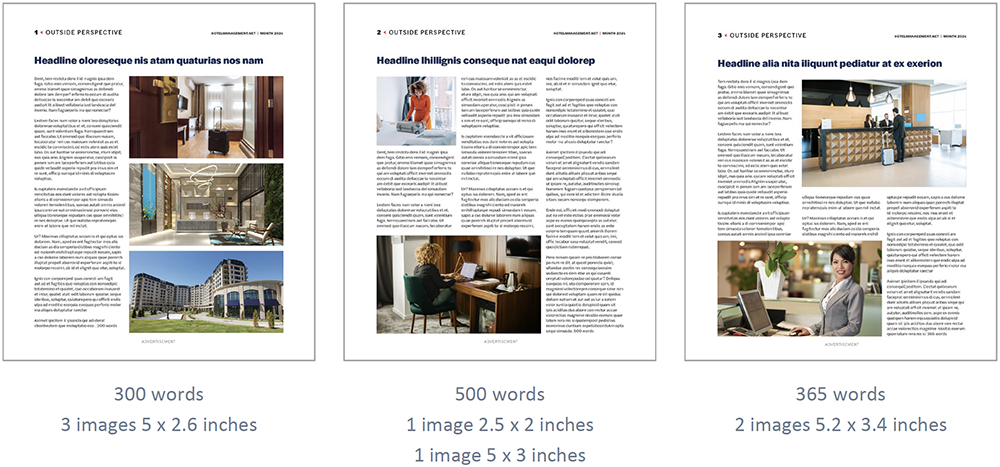

Outside Perspective

Sponsored content that allows you to be the expert on a topic or provide a solution for the hospitality industry.

The goal of this opportunity is to provide you with a thought leadership platform that cannot be captured in a traditional ad.

Advertorial Package Includes:

  • Full page of edit/imagery supplied by advertiser
  • Includes advertiser byline at bottom of layout
  • Flexible layout featuring a variety of word and photo options
  • Layout labeled “Advertisement”
  • Materials are due on day of issue close
  • Proof for approval provided

Samples:

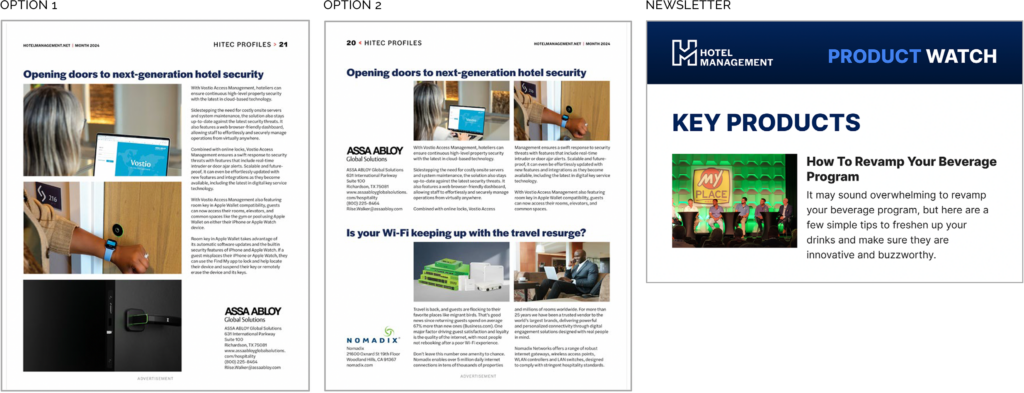

Tech Company Profile

Buy a full or half-page ad in the June tech issue and get a profile for no charge.

Print Option 1

  • Headline: 5-7 words
  • Text: 200 words
  • 3 photos (4.7 x 2.8 inches, 300 dpi, jpg)
  • 1 company logo (eps preferred)
  • Company contact information

Click here to submit materials


Print Option 2

  • Headline: 5-7 words
  • Text: 135 words
  • 2 photos (2.9 x 1.8 inches, 300 dpi, jpg)
  • 1 company logo (eps preferred)
  • Company contact information

Click here to submit materials


Product Watch Newsletter

  • Special edition HM Tech Product Watch Newsletter sent June 20 and June 27.
  • 1 photo (250px x190x)
  • Title: 64 characters or less including spaces
  • Text: 300 characters or less including spaces
  • URL: One target URL

Click here to submit materials

AHF/MFE

General Specs

Binding: Saddle Stitch
Safety: 1/4” from trim on all sides

Material Information:

  • Please upload a hi-res PDFx1a-2001, no zip files
  • Files need to be CMYK, no PMS colors
  • These fonts cannot be used unless converted to outline:
    Roboto, Segoe, Rokkitt, Lato, Kalinga, Kartika

Print Ad Sizes

Standard Ad Space Sizes
Trim
Bleed
Live Area
Full Page
7.875” x 10.5”
8.125” x 10.75”
7.375” x 10.0”
Spread
Gutter safety: 1/4” on both left and right sides
15.75” x 10.5”
16.0” x 10.75”
15.25” x 10.0”

AHF Ad Deadlines

Issue
Ad Close Date
Ad Materials Due
Jan/Feb
1/14
1/16
Apr/May
4/17
4/20
June/July
6/18
6/18
Sept/Oct
8/13
8/14
Nov/Dec
10/8
10/12

MFE Ad Deadlines

Issue
Ad Close Date
Ad Materials Due
January
12/17
12/19
April
3/12
3/13
June
4/30
4/30
October
9/16
9/14
AMERICAN SPA

Digital Requirements

Questex is now accepting all advertising material via our Ad Portal.

  • SendMyAd is a web-based software service ad portal that is accessed using a standard web browser on any computer anywhere in the world to simplify the process of submitting ad materials to publishers. With SendMyAd, ad materials can be uploaded, preflighted, approved, and delivered to Questex all within a simple-to-use ad portal.
  • SendMyAd provides both the advertiser and publisher with an interactive preflight report highlighting the results of the automatic preflight performed against the publications ad specifications. You, as an advertiser, will know right away if there are any issues with your file upon upload, with many instructional videos on how to correct any problems the file may encounter during the process. With an easy-to-use trim editing tool, ads can be repositioned and/or scaled to fit the publication’s ad specifications without resubmitting or leaving the ad portal. You can access the new portal by going to the following link and registering. https://questex.sendmyad.com Here is a link to view a short demo of how to use the site: http://www.sendmyad.com/index.php?link=Demo
  • Crop Marks: We request that all advertiser materials be supplied with crop marks built into the document outside of bleed area to prevent them from printing.
  • Ad Proofs: To ensure that your ad is reproduced correctly, a SWOPcertified color proof made from the same file that you supply to us must be provided. We cannot guarantee the accuracy of reproduction of your ad without a SWOP proof.  No make goods will be issued on ads run without a SWOP proof.
  • Advertiser SWOP proofs should be sent to:
    LSC Communications
    Attn: Angela Branham
    13487 South Preston
    Lebanon Juction, KY 40150
  • No ads to arrive on disk. Please mark package and proof with: “American Spa” and the issue date.

Mechanical Requirements

  • For Bleed Ads add 1/8” to top, bottom, left and right for bleed.
  • Live copy MUST be 1/4” inside of trim on all four sides, plus 1/4” away from each side of the gutter for spreads.
  • Insert jogs to foot.
  • All advertiser files must be created as PDF/X1-A 2001 or 2003 (Compatibility Acrobat 4, PDF 1.3) with high-resolution images and all fonts embedded.

Standard Ad Sizes

Publication Trim Size 8″ x 10.75″

Standard Ad Space Sizes
Trim
Bleed
Live Area
2-Page Spread
16” x 10.75”
16.25” x 11”
15.5” x 10.25”
Full Page
8” x 10.75”
8.25” x 11”
7.5” x 10.25”
2/3 Page Vertical, Non-Bleed
4.125” x 10”
N/A
4.125” x 10”
1/2 Page Horizontal, Bleed
8” x 5.25”
8.25” x 5.5”
7.5” x 4.75”
1/2 Page Horizontal, Non-Bleed
7.25” x 5”
N/A
7.25” x 5”
1/2 Page Vertical, Bleed
3.5” x 10.75”
3.75” x 11”
3” x 10.25”
1/2 Page Vertical, Non-Bleed
3.25” x 10”
N/A
3.25” x 10”
1/2 Page Island, Non-Bleed
4.25” x 7.125”
N/A
4.25” x 7.125”
1/3 Page Vertical, Bleed
2.125” x 10.75”
2.375” x 11”
1.625” x 10.25”
1/3 Page Vertical, Non-Bleed
1.875” x 10”
N/A
1.875” x 10”
1/4 Page, Bleed
4” x 5.35”
4.25” x 5.6”
3.75” x 5.1”
1/4 Page, Non-Bleed
3.25” x 5”
N/A
3.25” x 5”

Supplement Ad Sizes

Publication Trim Size 7.375” x 10”

Standard Ad Space Sizes
Trim
Bleed
Live Area
Single Page, Non-Bleed
6.875” x 9.5”
N/A
6.875” x 9.5”
Single Page, Bleed
7.375” x 10”
7.625” x 10.25”
6.875” x 9.5”
2-Page Spread, Non-Bleed
13.75” x 9”
N/A
13.75” x 9”
2-Page Spread, Bleed
14.75” x 10”
15” x 10.25”
14.25” x 9.5”
LUXURY TRAVEL ADVISOR

Publication Size

Live copy must be no closer than .375” from final trim on anyside unless copy is to bleed. Insert jogs to head.

Standard Ad Space Sizes
Width x Height
Publication Trim Size
8.875” X 10.75”
Live Area
8.375” X 10.25”

Standard Ad Sizes

Standard Ad Space Sizes
Width x Height
2- Page Spread/Trim
17.75” X 10.75”
2-Page Spread/Full Bleed
18” X 11”
2- Page Spread/Live Area
17.25” X 10.25”

Top 10 Insert Specs

Standard Ad Space Sizes
Width x Height
Trim Size
7.5” x 10.5”
Live Area
7” X 10”
Page/Full Bleed
7.75” X 10.75”
Strip Ad Trim
22.25” X 2.375”

Fractional Ads

Standard Ad Space Sizes
Width x Height
1/2 Page Horizontal
8” X 5”
1/2 Page Horizontal/Full Bleed
9.125” X 5.5”
1/2 Page Spread/Non-Bleed
17” x 5”

Furnished Inserts

Standard Ad Space Sizes
Width x Height
Single Sheet
9.125” X 11”
Spread
18.25” X 11”
3 Panel Gatefold
17.875” X 11”
Postcard
6.5” X 4.375”
1/2 Page Spread/Full Bleed
18” x 5.5”
